NIKKOR LF LENSES
W-SERIES
|
Given that there are 8 lenses in the Nikkor-W series, I have split this section into two pages. This is the second page of the W-series lenses. If you want to see the other W-series lenses, then click here: W-series lenses |
| Table of W-series lenses: |

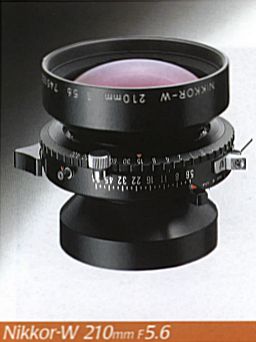

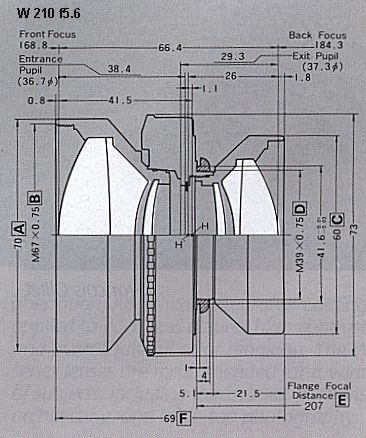

Nikkor-W 210mm f5.6
| Model | Nikkor-W 210mm f5.6 |
| Focal Length | 210mm |
| Maximum Aperture Ratio | 1 : 5.6 |
| Minimum Aperture | f/64 |
| Lens Construction | 6 elements in 4 groups |
| Covering Power (f/5.6) | 60 degrees |
| Covering Power (f/22) | 70 degrees |
| Image Circle (f/5.6) | 243mm |
| Image Circle (f/22) | 295mm (5" x 7") |
| Shutter | No.1 (Copal) |
| Shutter speed | 1 - 1/400sec., T,B |
| Sync socket | X-contact |
| Front mount size (A) | 70mm |
| Attachment size (B) | 67mm x 0.75mm |
| Rear mount size (C) | 60mm |
| Flange attachment size (D) | 39mm x 0.75mm |
| Flange focal distance (E) | 207mm |
| Overall length (F) | 69mm |
| Weight | 460g |
Back to table of W-series lenses

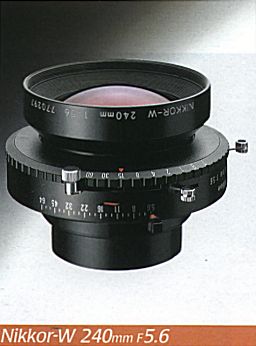

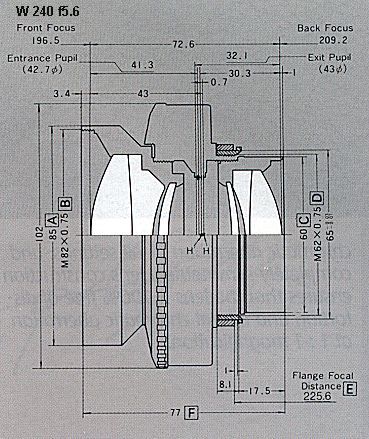

Nikkor-W 240mm f5.6
| Model | Nikkor-W 240mm f5.6 |
| Focal Length | 240mm |
| Maximum Aperture Ratio | 1 : 5.6 |
| Minimum Aperture | f/64 |
| Lens Construction | 6 elements in 4 groups |
| Covering Power (f/5.6) | 60 degrees |
| Covering Power (f/22) | 70 degrees |
| Image Circle (f/5.6) | 278mm |
| Image Circle (f/22) | 336mm (8" x 10") |
| Shutter | No.3 (Copal) |
| Shutter speed | 1 - 1/125sec., T,B |
| Sync socket | X-contact |
| Front mount size (A) | 85mm |
| Attachment size (B) | 82mm x 0.75mm |
| Rear mount size (C) | 60mm |
| Flange attachment size (D) | 62mm x 0.75mm |
| Flange focal distance (E) | 225.6mm |
| Overall length (F) | 77mm |
| Weight | 820g |
Back to table of W-series lenses

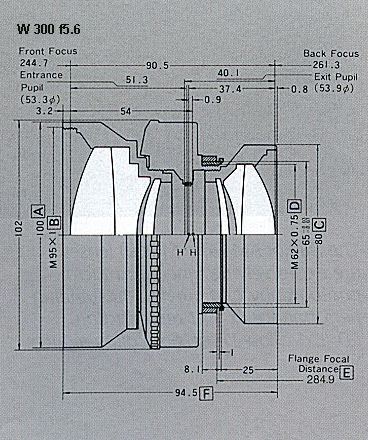

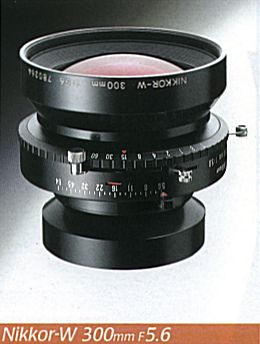

Nikkor-W 300mm f5.6
| Model | Nikkor-W 300mm f5.6 |
| Focal Length | 300mm |
| Maximum Aperture Ratio | 1 : 5.6 |
| Minimum Aperture | f/64 |
| Lens Construction | 6 elements in 4 groups |
| Covering Power (f/5.6) | 60 degrees |
| Covering Power (f/22) | 70 degrees |
| Image Circle (f/5.6) | 346mm |
| Image Circle (f/22) | 420mm (10" x 12") |
| Shutter | No.3 (Copal) |
| Shutter speed | 1 - 1/125sec., T,B |
| Sync socket | X-contact |
| Front mount size (A) | 100mm |
| Attachment size (B) | 95mm x 1mm |
| Rear mount size (C) | 80mm |
| Flange attachment size (D) | 62mm x 0.75mm |
| Flange focal distance (E) | 284.9mm |
| Overall length (F) | 94.5mm |
| Weight | 1,250g |
Back to table of W-series lenses

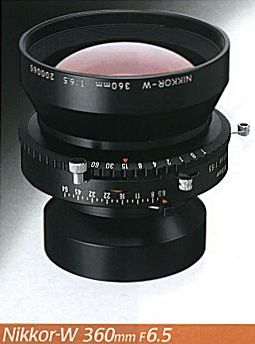

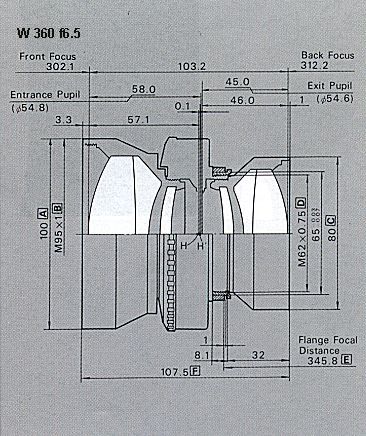

Nikkor-W 360mm f6.5
| Model | Nikkor-W 360mm f6.5 |
| Focal Length | 360mm |
| Maximum Aperture Ratio | 1 : 6.5 |
| Minimum Aperture | f/64 |
| Lens Construction | 6 elements in 4 groups |
| Covering Power (f/6.5) | 60 degrees |
| Covering Power (f/22) | 69 degrees |
| Image Circle (f/6.5) | 415mm |
| Image Circle (f/22) | 494mm (11" x 14") |
| Shutter | No.3 (Copal) |
| Shutter speed | 1 - 1/125sec., T,B |
| Sync socket | X-contact |
| Front mount size (A) | 100mm |
| Attachment size (B) | 95mm x 1mm |
| Rear mount size (C) | 80mm |
| Flange attachment size (D) | 62mm x 0.75mm |
| Flange focal distance (E) | 345.8mm |
| Overall length (F) | 107.5mm |
| Weight | 1,420g |
Back to table of W-series lenses
